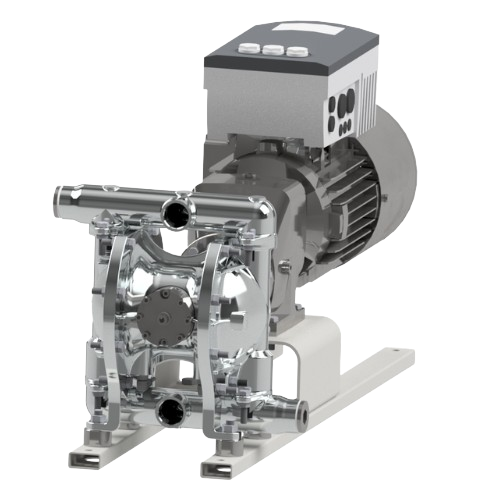

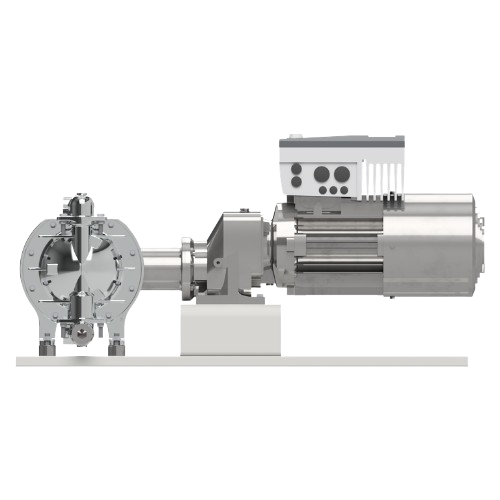

Depa IonTec - Electrically driven double diaphragm pump

DEPA IonTec™ is an advanced electric double diaphragm pump, built for continuous operation in demanding industrial environments. The pump combines high performance and reliability with low energy consumption and easy servicing thanks to its modular design and compatibility with DEPA AODD spare parts. The seal-less design and closed surface diaphragm allow the pump to run dry or against a closed valve without risk of damage to the pump or its surroundings, providing safe and efficient operation in chemical, water and wastewater treatment, and food and beverage applications.

Max. Capacity: Up to 7.2 m³/h
Maximum working pressure: Up to 6 bar
Material pump house/middle: Cast or polished stainless steel, aluminium; stainless steel centre block 1.4404
Material membrane: PTFE, EPDM or other application-specific materials
Temperature range: -25 to +130 °C
Dry suction height: Max. 2.5 mWs
